Extreme Low-Temp FKM BDTL Series Fluoroelastomer
Extreme Low-Temp FKM
Extreme Low-Temp FKM.png

Extreme Low-Temp FKM BDTL Series Fluoroelastomer

BDTL Series: Low-Temperature FKM Terpolymer with Superior Flexibility & Mold Flow

BDTL Series (Low-Temp FKM) delivers outstanding flexibility down to -24°C and excellent mold flow, featuring a pre-incorporated curative system for precision O-rings and gaskets.

    Contact us

    Overview

    BDT Series: Advanced Curative-Incorporated Terpolymer FKM for Aggressive Fluid Resistance

    The BDT Series (Terpolymer FKM) is a high-performance line of curative-incorporated fluoroelastomers designed to surpass standard copolymers in the most demanding environments. By utilizing a terpolymer backbone (VDF/TFE/HFP), this series offers superior resistance to aggressive fuels, oils, and chemical solvents, making it the ultimate choice for automotive, aerospace, and industrial fluid systems. Featuring an integrated curing system, the BDT series ensures exceptional batch-to-batch consistency and optimized scorch safety across a wide viscosity range. Our ChipChill coolant helps IDC centers achieve a PUE value close to 1.0, while our FSA is critical for new energy lithium battery PVDF adhesives and solar cell backsheets. Our elastomer products serve the automotive, petroleum, chemical processing, and wearable electronics industries due to their excellent resistance to high temperatures and corrosion.

    Contact us

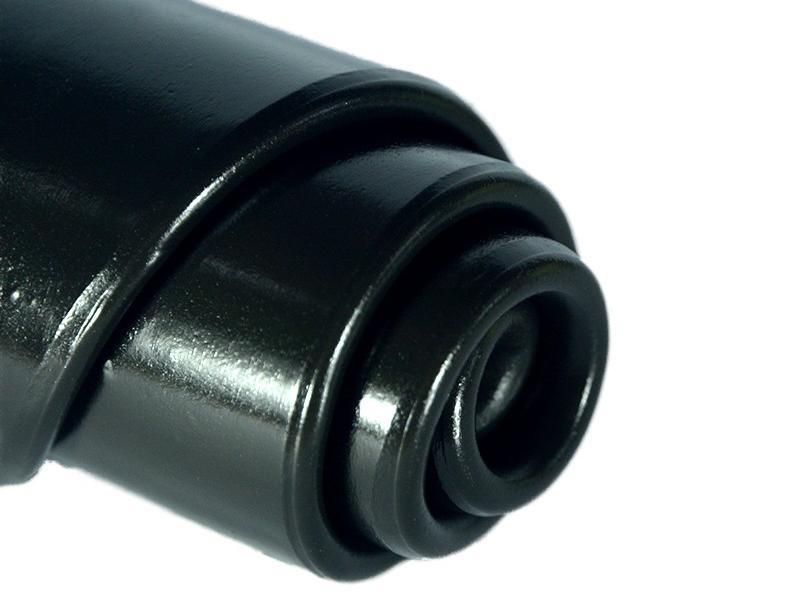

    extreme-low-temp-fkm-3

    Product Advantages

    • 01

      Superior Fluid Barrier

      The terpolymer structure provides significantly enhanced resistance to fuels and chemicals compared to traditional FKM copolymers.

    • 02

      Precision Curative Integration

      Built-in curing agents eliminate mixing errors, providing a fast cure rate and consistent physical properties for every production run.

    • 03

      Arctic-Grade Flexibility (BDTL Series)

      The BDTL40P grade is specifically modified to maintain sealing integrity in extreme cold without sacrificing fluid resistance.

    • 04

      High-Fluorine (HP) Options

      Grades like BDT601HP offer high crosslinking and maximum chemical resistance for critical industrial gaskets.

    • 05

      Efficient Processing

      Specialized grades like the BDT246 Series allow for shortened post-cure times at lower temperatures, reducing energy costs and increasing output.

    • 06

      Exceptional Mechanical Bonding

      High-viscosity grades (e.g., BDT651P) provide the "hot tear" strength required for complex metal-to-rubber bonding in oil seals.

    Material & Manufacturing Process

    1. Chemical Structure: A specialized blend of Vinylidene Fluoride (VDF), Tetrafluoroethylene (TFE), and Hexafluoropropylene (HFP), precisely balanced to optimize fluorine content.
    2. Our equipment Supported by advanced equipment such as short-path molecular distillation and electronic-grade purification filtration, we ensure superior product quality.
    3. Compounding Versatility: Fully compatible with standard FKM fillers and additives; can be processed using Internal Mixers or Two-Roll Mills.

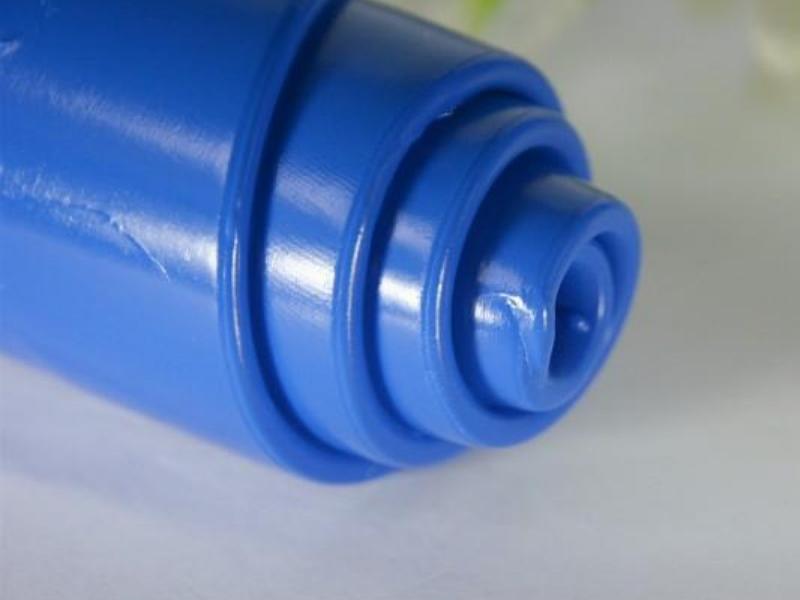

    extreme-low-temp-fkm-2

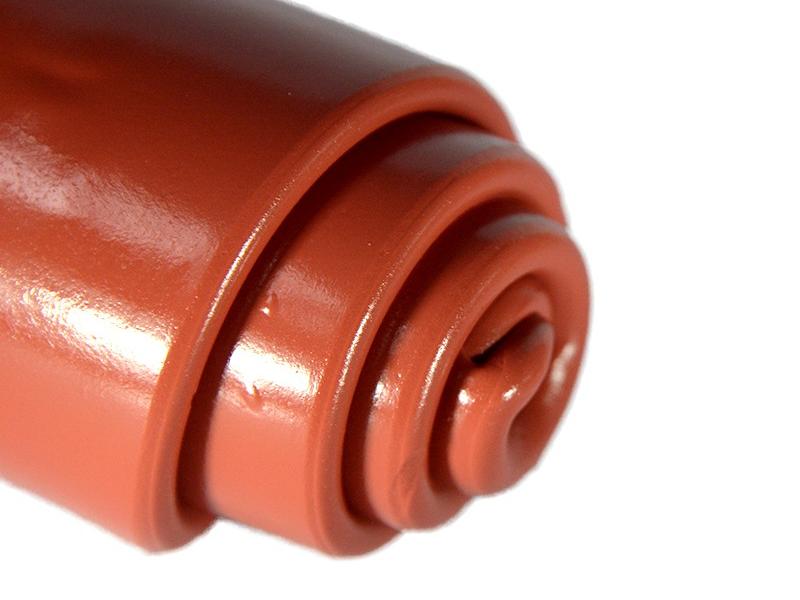

    extreme-low-temp-fkm-1

    Solutions & Application Scenarios

    1. Automotive Fuel Systems: Low-permeability hoses and injector O-rings handling ethanol-blended fuels and modern additives.
    2. Oil & Gas Industry: High-viscosity seals (BDT651P) designed to withstand high pressure and aggressive drilling fluids.
    3. Aerospace & Defense: BDTL Seriessolutions for sealing components that must remain flexible at high altitudes and sub-zero temperatures.
    4. Chemical Engineering: Gaskets and pump liners requiring the improved barrier properties of a 68-70% fluorine terpolymer.

    Technical Processing Guide

    01

    Molding Methods

    Optimized for Compression, Injection, Transfer molding, Extrusion, and Calendering.

    6511419c2763338526
    02

    Cure Efficiency

    Designed for a standard press cure (typically 170°C–180°C) with the ability to achieve full properties through a streamlined post-cure cycle.

    6511419c2763338526
    02

    Pro-Tip

    For the best surface finish in complicated molds, re-mix (re-mill) the compound prior to molding to ensure optimal flow and air release.

    6511419c2763338526
    02

    Advanced Materials

    ChipChill electronic-grade direct immersion single-phase coolant, Fluocon perfluoropolyethers (PFPE), Borflon FSA (an eco-friendly Y-Type perfluoro surfactant and PFOA substitute), and MQ silicone resin (customizable methyl and vinyl types).

    6511419c2763338526

    Product Specifications

    Grade Polymer properties Process Description Typical Use
    Nominal Viscosity ML (1+10) @ 121℃ Specific Gravity
    g/cm3     		Fluorine Content
    F%     		Vol. Change
    Fuel C
    / 70h@23℃     		Tr10
    ℃     		Tensile (MPa) Elong (%) Duro (Shore A pts) Compression Set, %
    70h @ 200℃     		Compression Transfer Injection Extrusion Calendering Bonding
    BDTL40P 40 1.80 66 4% -19 16.2 220 74 26 O O O O O   Slightly improved low temperature flexibility General purpose, O-rings and gaskets, extruded profiles
