Fluocon® PFPE Vacuum Pump Oils for High-Vacuum and Corrosive Applications
The Pinnacle of Vacuum Lubrication
Fluocon® PFPE Vacuum Pump Oils: High-Performance Lubrication for Extreme Vacuum Environments
Fluocon® PFPE Vacuum Pump Oils represent the ultimate hydrogen-free lubrication solution, offering ultra-low vapor pressure and exceptional thermal-oxidative stability for demanding high-vacuum applications. Specifically engineered for systems where conventional mineral or synthetic oils fail, Fluocon® L series lubricants are built on a robust linear Perfluoropolyether backbone. By eliminating hydrogen atoms, this advanced fluid achieves a level of chemical inertness that is unmatched in the industry. Whether you are managing corrosive gas flows in semiconductor etching or maintaining high-integrity vacuum seals in aerospace research, Fluocon® PFPE vacuum pump oil ensures zero carbonization, minimal outgassing, and an extended service life that significantly reduces your total cost of ownership.
Advanced Chemical Composition & Manufacturing
The superior performance of Fluocon® PFPE fluids begins at the molecular level. Unlike standard vacuum oils, our PFPE is a polymeric chain composed exclusively of Carbon, Fluorine, and Oxygen. This unique hydrogen-free architecture is achieved through a high-precision polymerization process, resulting in a fluid that does not react with Lewis acids or strong oxidizing agents. The manufacturing process ensures a tight molecular weight distribution (ranging from 1,850 to 4,300 AMU), providing consistent kinematic viscosity across various grades—from the lightweight L2-06 to the robust H4-40. This purity is critical for preventing the formation of acidic by-products and sludge, which are common causes of pump failure in aggressive chemical environments.
Multi-Dimensional Performance Advantages
Fluocon® PFPE Vacuum Pump Oils are defined by their ability to provide solutions where others provide compromises:
- Ultra-Low Vapor Pressure: With values as low as 5×107 torr at 25℃, our fluids enable the achievement of ultimate total pressure targets in high-vacuum systems.
- Inherent Non-Flammability: Featuring no flash or fire point, these oils provide an essential safety margin in oxygen-rich or high-heat environments.
- Superior Material Compatibility: Fluocon® is completely non-reactive with most metals, plastics, elastomers, and rubbers, ensuring the integrity of your O-rings and seals.
- Extreme Thermal Stability: Resistant to thermal breakdown even at continuous operating temperatures exceeding 200 ℃, preventing oil consumption and deposit formation.
- Radiation & Chemical Resistance: Ideal for nuclear and chemical processing industries where radiation stability and resistance to aqueous/non-aqueous solvents are mandatory.
-
Semiconductor & Electronics

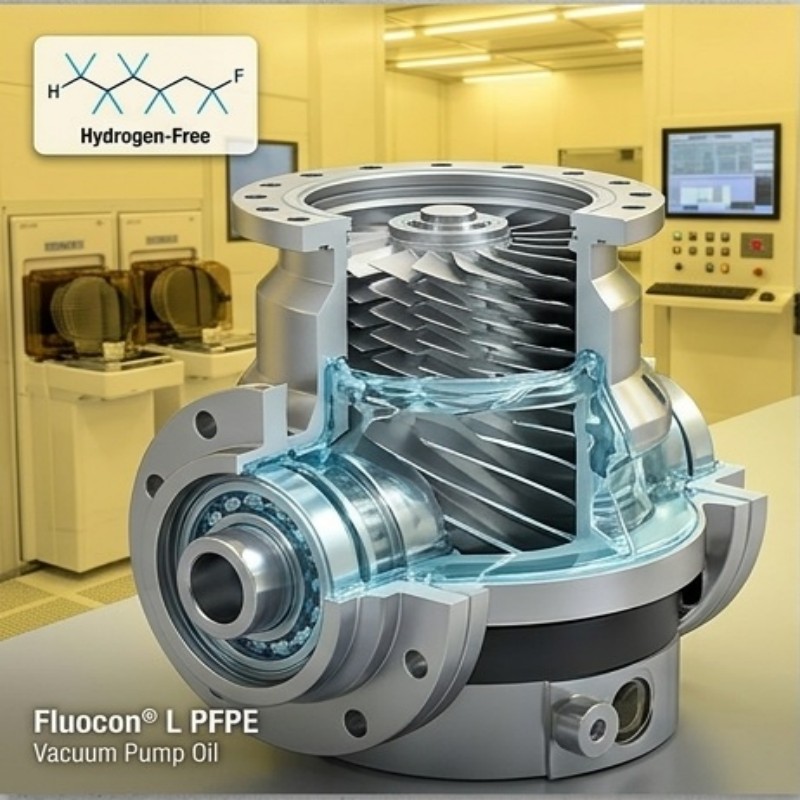

Essential for Rotary Pumps and Turbomolecular Pumps handling etching and CVD gases.
-
Industrial High Vacuum
Optimized for Roots Pumps and Diffusion Pumps requiring low heat of vaporization and high dielectric properties.
-
Chemical & Pharmaceutical
Providing reliable sealing and lubrication for pumps exposed to highly reactive reagents and solvents.
-
Data Center & Lab Equipment
Used in mass spectrometers and high-density computing
|
Application (Pump Type) |
L2-06 |
L2-14 |
L3-16 |
L3-25 |
L3-40 |
L4-15 |
|

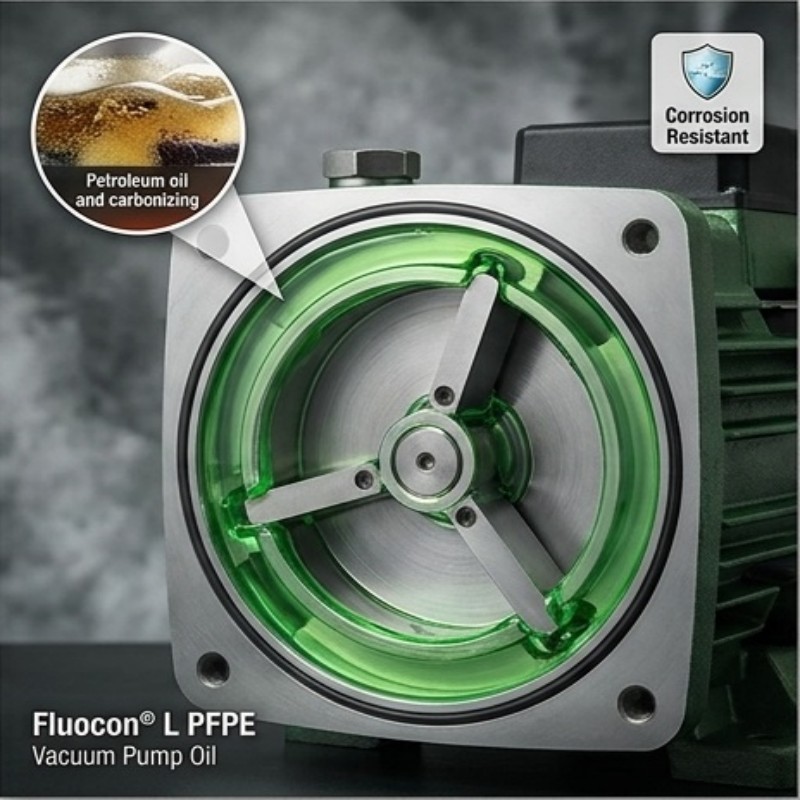

Rotary Vane Pumps (Sealing & Lubrication) |
★ |
★ |
|
★ |
|
|
|
Turbomolecular Pumps (Lubrication) |
★ |
|
|
|
|
|
|

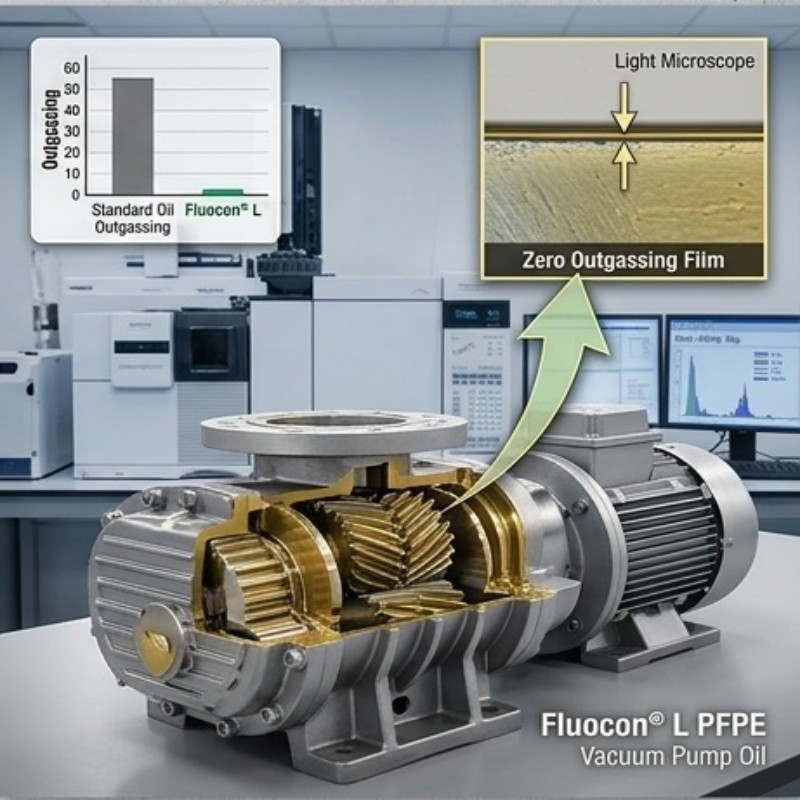

Roots Pumps (Lubrication) |
|
|
★ |
★ |
|
|
|
Diffusion Pumps (Working Fluids) |
|
|
★ |
★ |
★ |
★ |
Technical Specifications
|
Properties |
Typical values |
|||||
|
Grade |
L2-06 |
L2-14 |
L3-16 |
L3-25 |
H3-25 |
H4-40 |
|
Molecular Weight (AMU) |
1,850 |
2,600 |
2,800 |
3,450 |
3,650 |
4,300 |
|
Kinematic Viscosity @ 20°C (cSt) |
65 |
150 |
163 |
260 |
275 |
463 |
|
Viscosity Index (ASTM D2270) |
72 |
98 |
105 |
110 |
118 |
- |
|
Pour Point (°C) (ASTM D97) |
-52 |
-45 |
-45 |
-35 |
-35 |
-32 |
|
Vapor Pressure @ 25°C (torr) |
7x10-7 |
1x10-7 |
2x10-6 |
5x10-7 |
- |
- |
|
Vapor Pressure @ 100°C (torr) |
3x10-3 |
2x10-4 |
2x10-4 |
5x10-5 |
- |
- |
|
Heat of Vaporization @ 200°C (cal/g) |
11 |
8 |
8 |
7 |
7 |
7 |
|
Density @ 20°C (g/cm³) |
1.88 |
1.89 |
1.9 |
1.91 |
1.91 |
1.91 |
|
Surface Tension (dyne/cm) |
21 |
22 |
22 |
22 |
20 |
20 |
|
Evaporation Loss 22hrs @ 149°C (% by wt) |
- |
4 |
3.5 |
0.8 |
0.5 |
- |
|
Evaporation Loss 22hrs @ 120°C (% by wt) |
4* |
- |
- |
- |
- |
- |
|
Ultimate Total Pressure (torr) |
1.7x10-3 |
1.4x10-3 |
2.4x10-3 |
1.2x10-3 |
- |
- |
|
Specific Oil Consumption (cm³/hr) |
0.4 |
0.6 |
0.5 |
0.7 |
- |
- |
