Fluoroelastomers (FKM/FFKM)

Fluoroelastomers (FKM/FFKM)

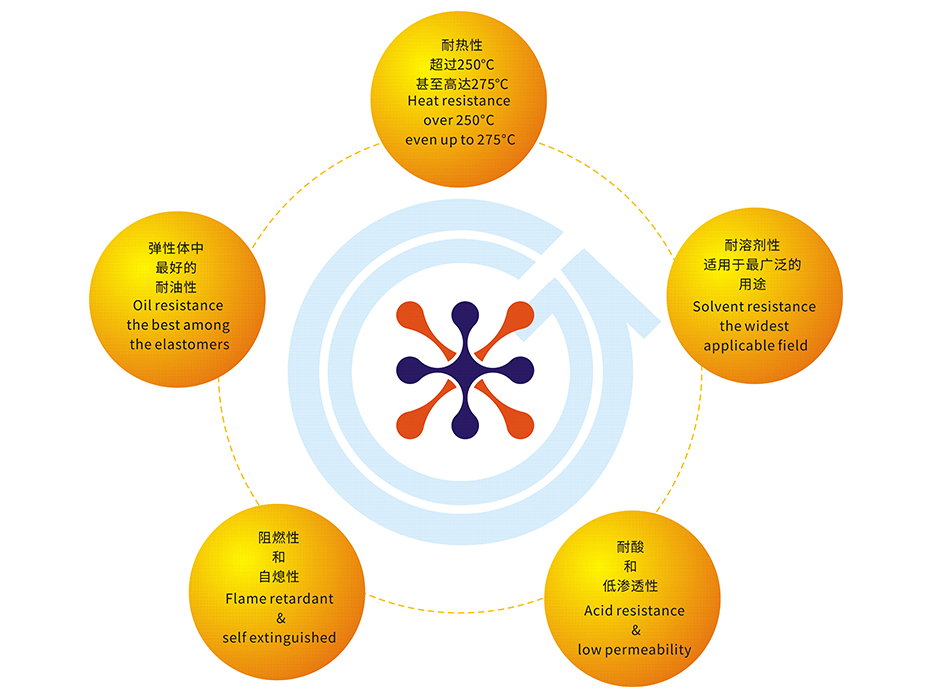

Advantages of fluoroelastomer(FKM)

What's the fluoroelastomer(FKM)?

Fluoroelastomer is one of the newest and most promising members of the elastomer family.
Fluoroelastomer  resist a wide variety of corrosive fluids at elevated temperatures while retaining their mechanical properties.Other important features of Fluoroelastomer include resistance to weathering ozone,oxygen and flame...good tensile strength,resilience,low compression set.Because it has above excellent propertiews,fluoroelastomer is widely used in automobile,aerospace,aircraft,chemical processing,petrochemical and power supply industries.

  • Heat Resistance over 250℃ even up to 275℃
  • Solvent resistance,the widest applicable field
  • Acid resistance & low permeability
  • Flame Retardant & self extinguished
  • Oil resistance, the best among the elastomers
Contact us
telephone-1+86-18180485065

FKM Product Introduction

fluoroelastomer-(2)

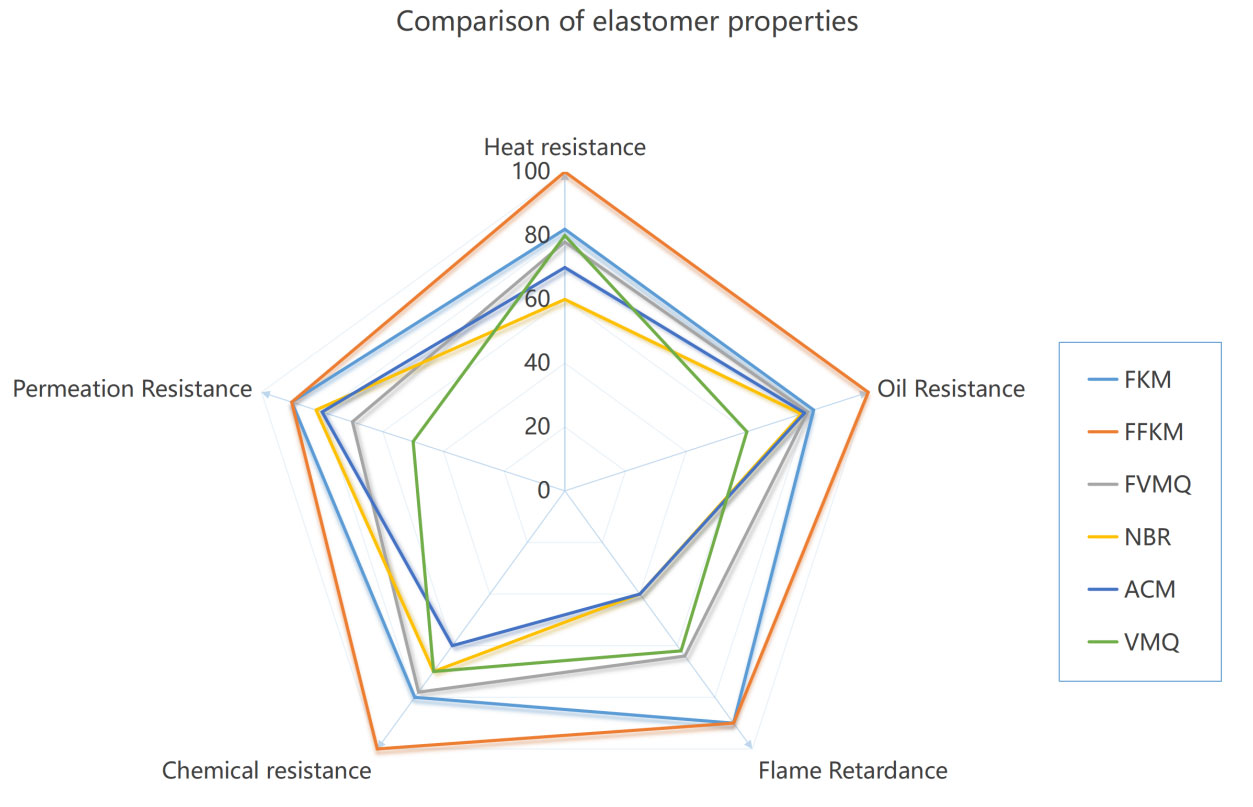

Comparison of elastomer properties

Common Name
Characteristics

ACM

CR

EPDM

NBR

VMQ

FVMQ

FKM

FFKM

Heat resistance

++++

++

++++

+++

+++++

++++

+++++

+++++

Low temperature resistance

++++

+++++

+++++

+++++

+++++

+++++

+++

++

Dielectric properties

+++

+++

+++++

+++

++++

++++

++++

+++++

Solvent resistance

++++

+++

++++

+++

+++++

+++++

+++++

+++++

Flame Retardance

++

++++

++

++

++++

++++

+++++

+++++

Weatherability

+++++

+++++

+++++

+

+++++

+++++

+++++

+++++

Steam Resistance

+

++++

++++

++++

++++

++++

+++++

+++++

Acid Resistance

+++

++++

+++++

++++

++++

++++

+++++

+++++

Alkali Resistance

+++

++++

+++++

++++

+++++

+++++

+++++

+++++

Oil Resistance

++++

+++

+

++++

+++

++++

+++++

+++++

Permeation Resistance

++++

+++

+++

++++

++

+++

+++++

+++++

+++++:Excellent    ++++:Good  +++:Fair ++:Poor +:Not recommended

The categories and features of FSE fluoroelastomer

Grade
Series

Categories

Fluorine
Content

Service
Temperature

Special
 Properties

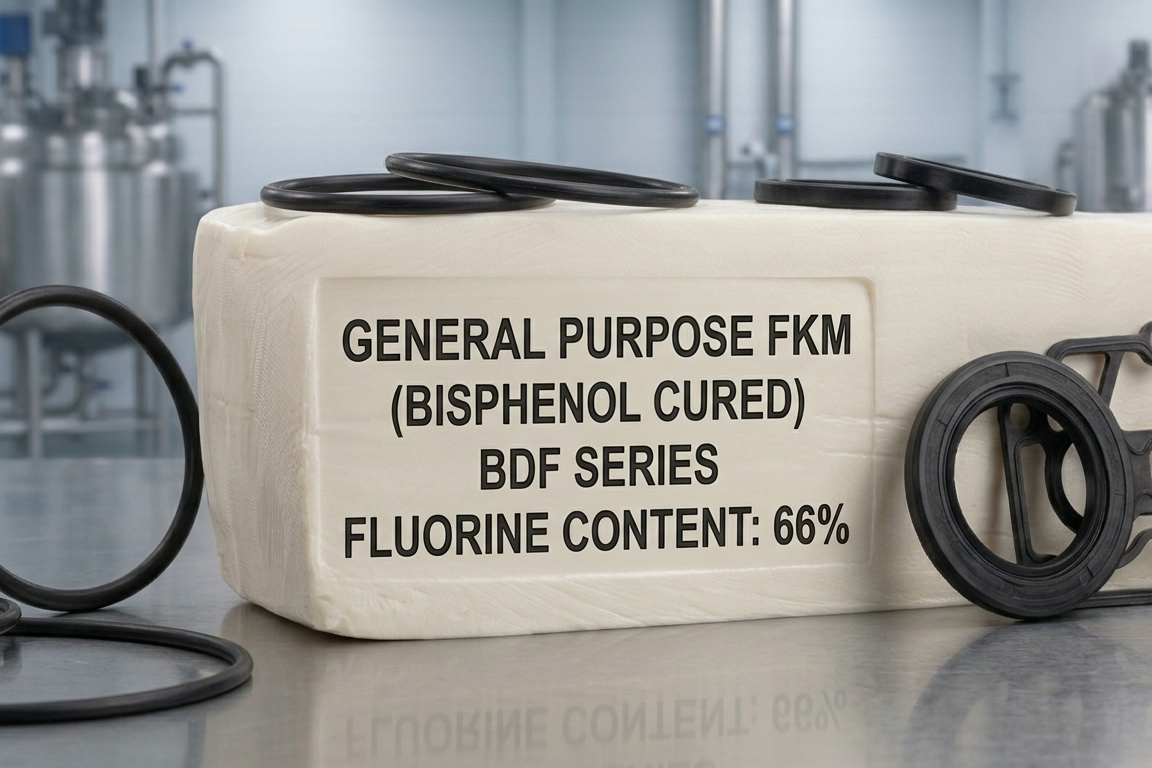

BDF

VDF  and  HFP  Copolymer

66%

-25~230℃

Miscellaneous applications with
the balanced properties between
the performanceand the processing properties

BDT

VDF,HFP and TFE Terpolymer

68-69%

-30~230℃

Better resistance to heat&chemicals,
as wellas good resistanceto compression set

BDTL

VDF,HFP and TFE Terpolymer

66-67%

-35~230℃

Excellent resistance to fuel and low
temperature.

BDHT

VDF,HFPand TFE Terpolymer

70%

-40~230℃

The best fuel resistance grades among
bisphenol curable FKM

BDP

Peroxide Curable
Terpolymer

67~70%

-25~200℃

Applications for super chemical
resistance required

BDPL

Low temperature resistance FKM

64~67%

-45~200℃

Applications for low temperature
resistance required

BDBR

BASE Resistance FKM

65%

-25~230℃

Applications for base
resistance required

BDFF

Perfluoroelastomer(FFKM)

72~73%

-10~315℃

Applications for super high temperature
(up to 320°℃)resistance or superior
chemical resistance required

BDFS

Fluorosilicone

36%

-60~200℃

Better cold resistance than FKM,
improved fuel resistance than VMQ
